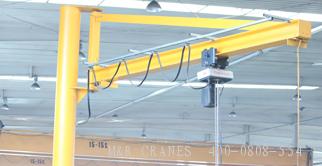

特性描述Feature Description 优化设计，结构轻，符合欧洲标准FEM 1.001 A4 Compacted frame, smoothly moving Frame classification according to FEM 1.001 : A4 扁电缆托令系统供电，运行平稳，操作方便 Smooth and sophisticate operation Flat cable feeding line with sliding supports 品种多样，满足不同需求，起重量达到5000kg Complete solution for lifting needs, Max. 5000kg 环氧富锌油漆，漆膜附着力强，十年以上寿命，中黄RAL1028 Finish : Bright yellow polyurethane topcoat RAL 1028 旋臂采用高效的自润滑型推力轴承 Slewing is effected on a plain bearing with a self-lubricating ring 高度调节范围大 Large height adjustment 安装法兰采用M24/10.9级高强螺栓固定 Brackets are secured by H.R.M. 24 bolts, class 10.9. 所以螺栓安装都采用力矩扳手拧紧，紧固力矩达到92mkg Tightening must be achieved by using torque wrench Tightening torque: 92mkg. 连接强度高 Strong profile connection 轻型紧凑结构，对建筑要求低 Light construction - low loading for the building 安装方便 Easy to install |
 |
|

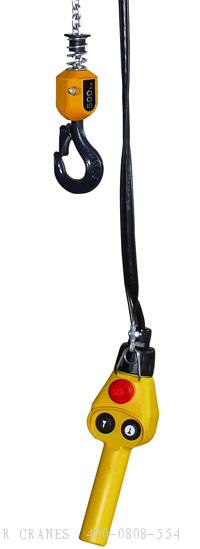

地操 Pendant 操作简便，无需设置专业驾驶员 Easy control, no additional driver necessary 双挡按钮 Two steps push button, with emergency stop 跟随式或独立滑道非跟随式悬挂 Independent festoon station or fixed suspened under hoist 防护等级为IP65 Protection class IP65 寿命50万次Life time 500,000 遥控 Remote Control 操作简便，无需设置专业驾驶员，操作者在地面自由度大 Easy control, no additional driver, remote access 几万组频点，互不干涉 Flexible frequency selection, total reliable 双挡按钮或摇杆式操纵杆 Two steps push button or joy stick station with emergency stop 防护等级为IP65 Protection class IP65 寿命50万次Life time 500,000 |
  |
|
起重机速度 Speed control 起升 Lifting Motor 通常采用双速，造价低，冲击小，节能，定位精确 Pole changed squirrel cage moter, 2 speed with fast and slow selection, precise load handling IP55 / F class 小车运行 Trolley traversing 手动或变频调速，运行平稳，噪音小，有效防止重物的晃动 Manual push trolley or stepless motorized trolley, more stable movement, safety solution IP54 / F class 旋转机构 Slewing 手动或变频调速，运行平稳，噪音小，有效防止重物的晃动 Manual or stepless motorized slewing, more stable movement, safety solution IP54 / F class |
   |
