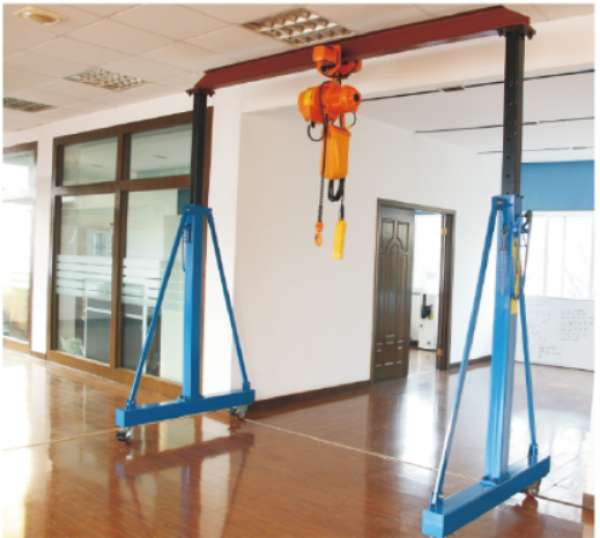

FT1可拆式升降龙门架(便携式)Assembled Liftable Gantry Crane

特性简介(The performance excellence)

可全方位移动性，可快速拆卸安装，占地面积小，高度可分级调节，钢架构设计合理，用微型汽车就可转移到另一个场地安装使用，实现一机多场地使用。厂房高度受限时，还可配低净空电动葫芦，实现超低空轻松作业，龙门架上的每一个支架都可以拆装，拆装完毕后可以打包成一捆，方便长途运输。
The gantry has a full range of mobility, easy to installation and disassembly, covering a small area, with grade adjustableheight , reasonable steel structure design. lt can be transferred to another site by a mini car to achieve a machine used in multisites. If the height of the plant is liited, the low headroom electric hoist is available for low altitude operation. Each trestleof the gantry can be dismantled, then packaged into a bundle, and facilitate long-distance transport.

适用场合(Suitable occasions)

地面平整的场地、仓库、物流中心、生产车间、试验室、洁净室等。
Flat ground, warehouse, logistics center, production workshop, laboratories, clean rooms, etc.

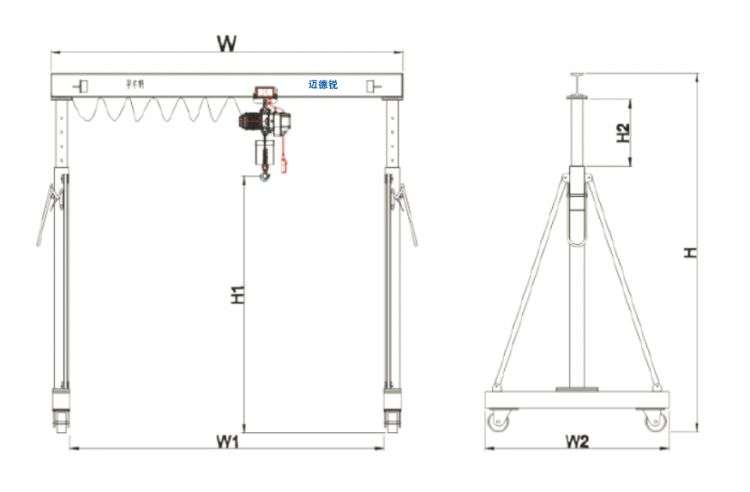

FT1可拆式升降龙门架(便携式)外形尺寸图

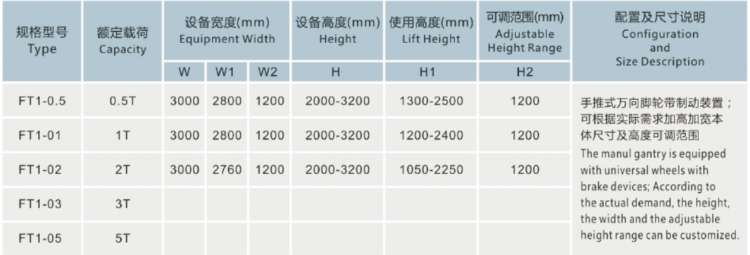

FT1可拆式升降龙门架(便携式)技术参数表

配置及尺寸说明ConfigurationandSize Description
