MRG型欧式钢丝绳电动葫芦

Multi-product + Advanced Technology + System Solution
M&R sets high quality products and advanced technology in one, in addition to the lifting industry experts and experience A wealth of engineers; It also offers a wide range of products and safe and reliable system solutions.And to best serve our customers.


多元产品+先进技术+系统方案
迈德锐集高质产品与先进技术，除了拥有起重行业专家和经验丰富的工程师； 还提供丰富多元的产品和安全可靠的系统解决方案，并以最佳方式服务于我们的客户。
MRG SERIES EUROPEAN ELECTRIC WIRE ROPE HOIST
MRG欧式电动钢丝绳葫芦

PRODUCT ADVANTAGES:
产品优势
A厚积薄发，创新之作
Accumulation and Innovation
A结构紧凑，节能环保
Compact structure, excellent performance
A高效传动，效率之源
Efficient Transmission and power source
A卓越性能，安全可靠
Excellent performance, safe and reliable

Standard Configuration Of BMG Series Wire Rope Electric Hoists 标准供货范围
►lt~32t    ； 32t~100t 标配升电机
Double speed lifting motor with 1 ton-32ton standard variable
►朝电制动器，
Frequency lifting motor with 32ton to 10Oton standard Lifting electromagnetic disc brake and maintenance-free design
►380V/3Ph/50Hz 供电电压
380V/3P/50HZ supply voltage
►控制电压48V
Control voltage 48V

Lifting limit switch
►运行电机，速度5~20m/min
Variable frequency motor of trolley with the speed of 5/20m/min
►电机防护等级IP55 ,绝缘等级F
Protection grade of electric motor is Grade IP55, and insulation grade is F
►吊钩组,带扣
Lifting hook group with safety clasp
►起重机限制器
Load lifting limiter
►使用环境温度:-20°C~+40°C
Environment temperature :-20C°-+40C°

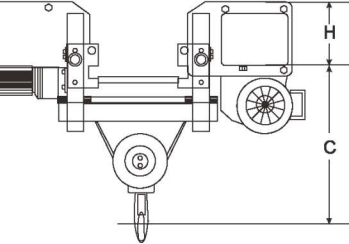

Compact structure, light self-weight, small wheel-pressure and high comprehensive cost performance
结构紧凑，自轮压小，性价比高
迈德锐领先的技术部件性能保证了产品最优的极限尺寸和设备高度,在保证高效 性能前提下结构紧凑,同样的厂房和工作区域内，迈德锐欧式电动钢丝绳葫芦能 够覆盖更大的作业范围，增大厂房内部面积的利用率，减小盲区。如果在厂房设计 阶段就應迈德锐的产品系列参数进行设计，可以大大降低起重设备对厂房高度 和的要求。
Leading technology and component performance ensure the optimal extreme dimension of the products and the height of equipment and the compact structure under the premise of ensuring the high efficiency. Within the same plant and working area, MRG series European Electric Wire Rope Hoist can cover larger working range, which increases the utilization of the internal area of the plant and decreases the dead zone,if the plant is designed in accordance with he parameters of series of products of M&R during the design stage, Requirements for the lifting equipment can be greatly reduced for the height and bearing capacity of the plant, which reduces above 10% of plant investment for the customers and improves the efficiency of investment.
Save operating costs and green energy saving
节约运行，绿色节能
迈德锐配置MRG系列欧式电动钢丝绳葫芦的欧式起重机可以明显降低主梁及整机自重，相对同样国产的厂区，平均每年省30%.同时，迈德锐电动葫芦运行噪音优于国家标准，营造出更加安静的工作空间。
European type cranes equipped with MRG series European Electric Wire Rope Hoists can significantly reduce self-weight of the girder and the complete machine, and decrease the total power of running, as well as can save over 30% of power per year on average compared with the plants hose use the domestic traditional cranes, Meanwhile, the running noise is superior to the national standard of MRG series European

Electric Wire Rope Hoist .which created a move quiet work space.
Selection of high quality of components with safety and reliability and durable in use
优质部件，安全可靠，坚固耐用
迈德锐高品质部件是产品卓越品质基础，从起升电机到减速器,从卷筒到钢丝 绳,从安全可靠的电气元件到精益求精的结构件，迈德锐认真对待每一个部件， 因为只有各个部件拥有良好的性能和质量才能确保整机的性能和品质。结构紧凑、 性能卓越的起升三合一专为MRG钢丝绳电动葫芦研发的，减速机齿轮硬度研磨和齿面硬化，噪音低、持久耐用。起升电机接电 60%,既满足了过程中的,又可提高产品的可靠性。进口制动盘，0^100万次的制动寿命。
Components with high quality are the basis for excellent quality of products. M&R company takes each components seriously from lifting motors to reducers , from reels to steel wire ropes, from safe and reliable electrical components to the best structure components. Because M&R company believes the only each components of good performance and quality can ensure the performance and quality of the complete machine. Lifting trinity mechanism with compact structure and superior performance is developed and designed for MRG series European Electric Wire Rope Hoist. The reduction gear products low noise and becomes durable in use by high precision grinding and hardening treatment of the gear surface.
Electrical connection sustained rate is up to 60% of the lifting motor, which not only meets frequent use during the process of
production, but improves the reliability of the products. The imported brake disc provides the breaking lifetime of more than one million times with excellent wear-resisting property.

Precise positioning and efficient running can improve production efficiency
精准定位，运行高效，提升生产效率
迈德锐标配起升双速（变频可选）、小车运行变频，确保的起重机的平稳运行 车间物流效率的提升，确保客户的各项工作计划如期执行。通过变频技术的的应 用，可以有效减少载荷搬运过程中的晃动，使载荷定更加快速、精准，同时，变频 技术明显降低了启制动时的冲击,厩个搬运过程更加平稳、安全，
M&R Standard lifting with double speed (optional frequency conversion) and frequency conversion control of trolley ensure the efficient running of the crane and promotion of logistics efficiency in workshop, and ensure the implementation of the whole work plans of customers on schedule. By the application of frequency conversion technology, it can effectively reduce shaking of load in the process of handling, which makes the load positioning more quickly and accurately. Simultaneously, it significantly reduces theimpact of starting and braking , thus the whole handling process becomes much more smooth and safe.
Safe and reliable, running monitoring and simple and convenient maintenance
可靠运行  维修简单
M&R Patented technology product is provided with various functions such as monitoring, protection, which can ensure safe and reliable operation of the crane, and its running monitoring unit can make detailed records of running condition of electric hoist, running status of motor and safety working cycle, and provide warning in advance. All records can provide data for maintenance, and the root of the problem should be understood to be able to provide maintenance much more timely and efficiently .
