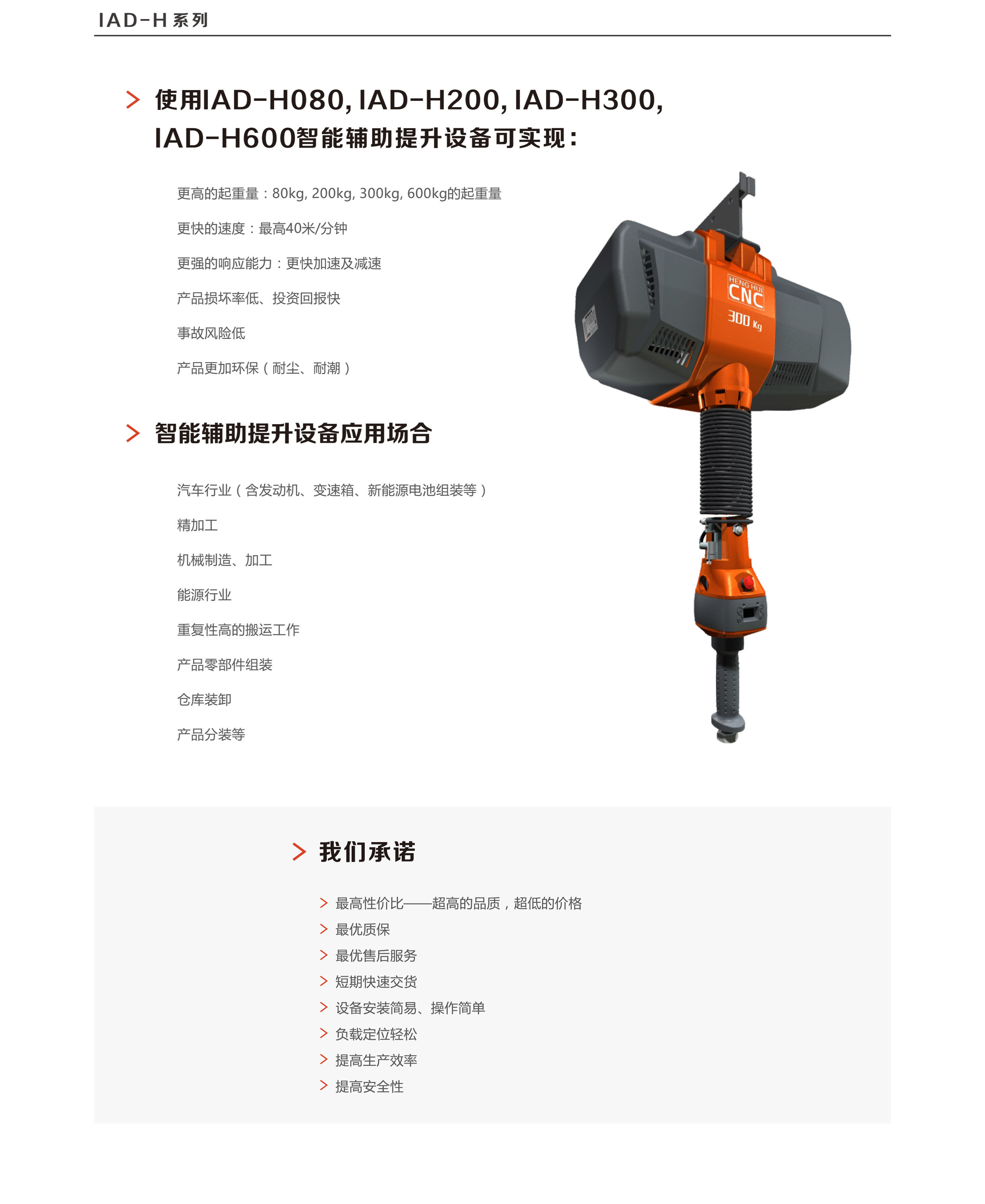

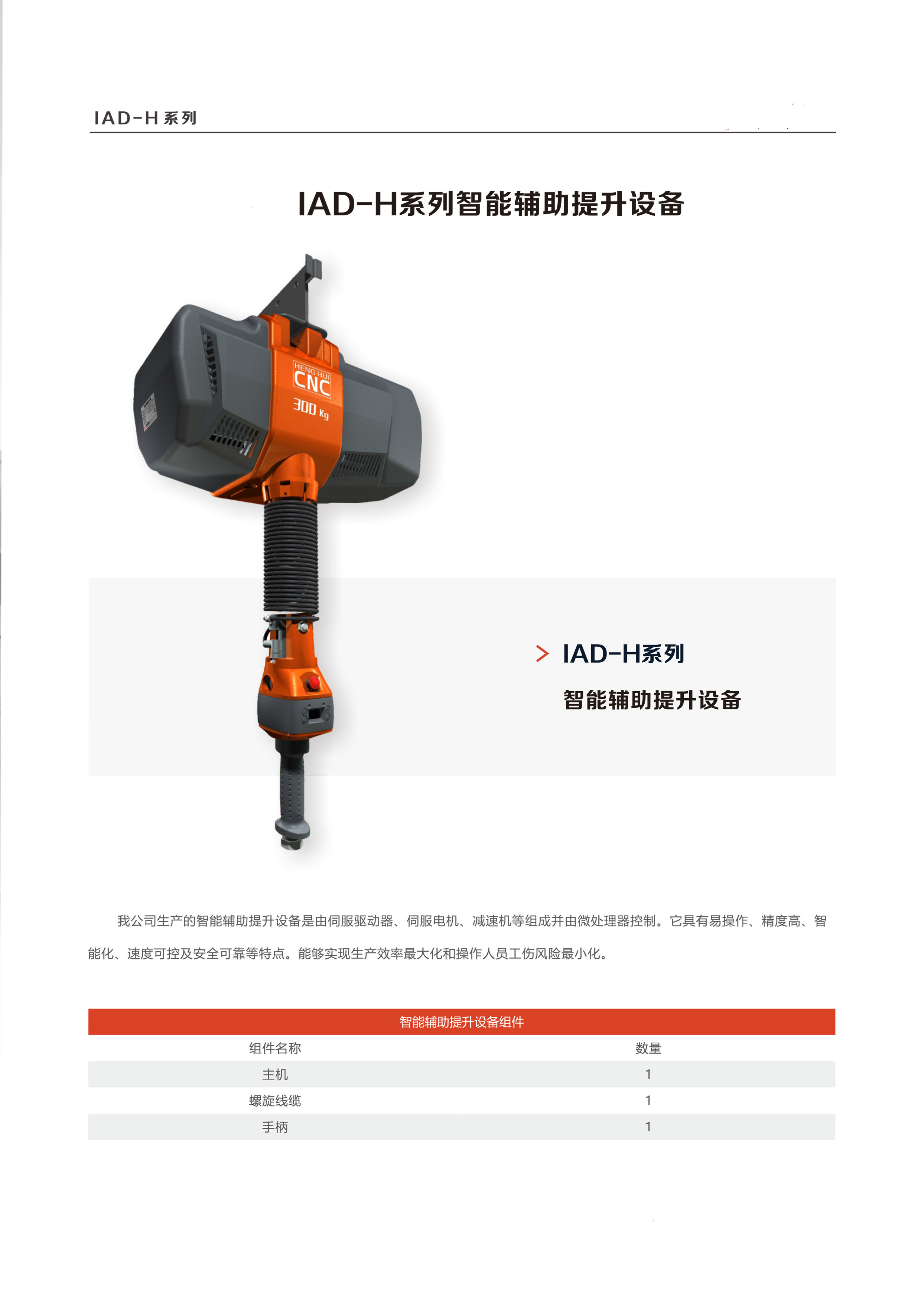

Introduction of IAD-H080 Intelligent Auxiliary Hoisting Equipment:

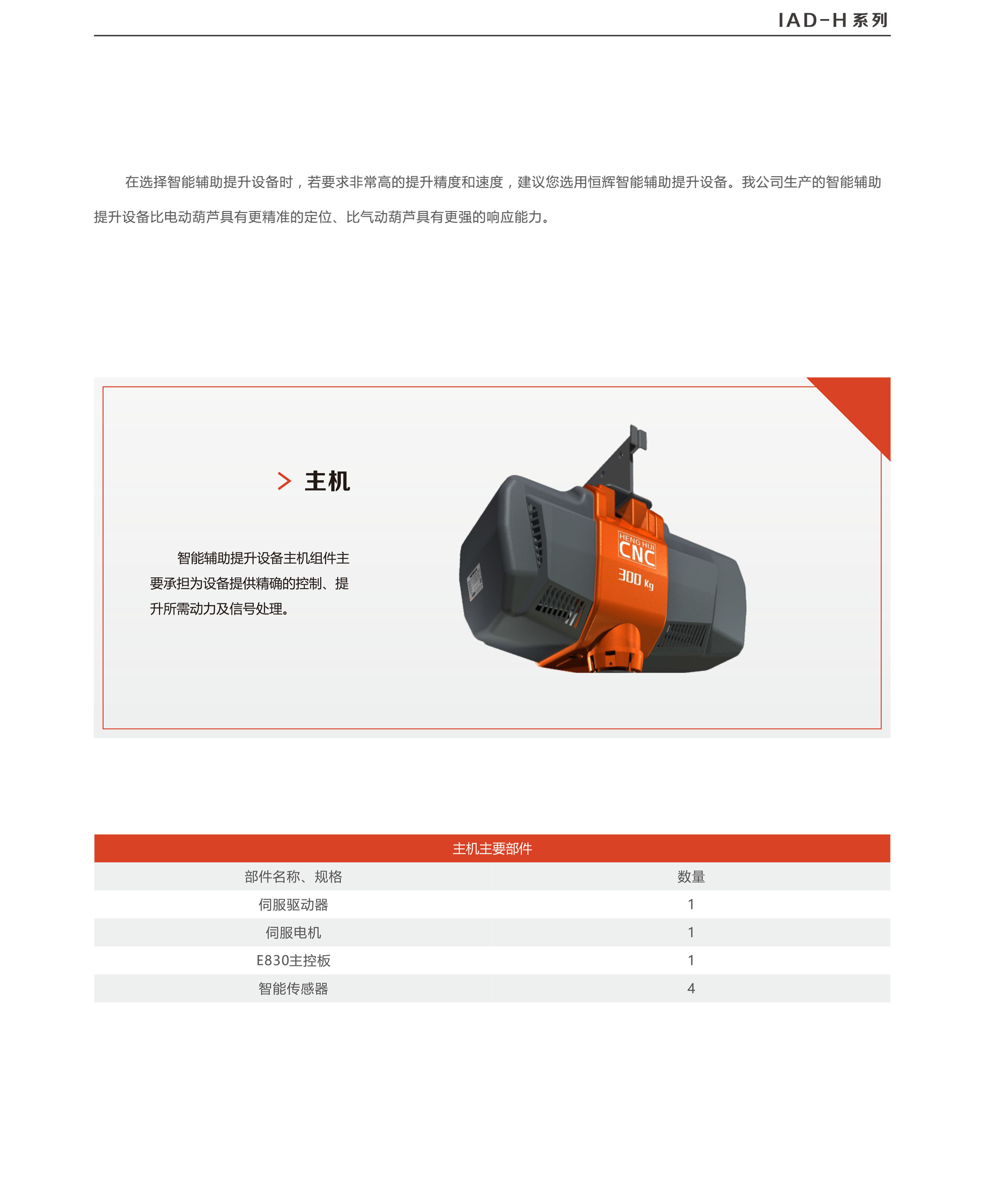

IAD-H080 intelligent auxiliary lifting equipment is composed of servo motor, servo driver, weighing sensor, limit switch and so on. It is controlled by processor and meets the requirements of ergonomics. It is easy to operate, high precision, intelligent, speed controllable and safe and reliable. It can maximize the production efficiency and minimize the risk of occupational injuries.

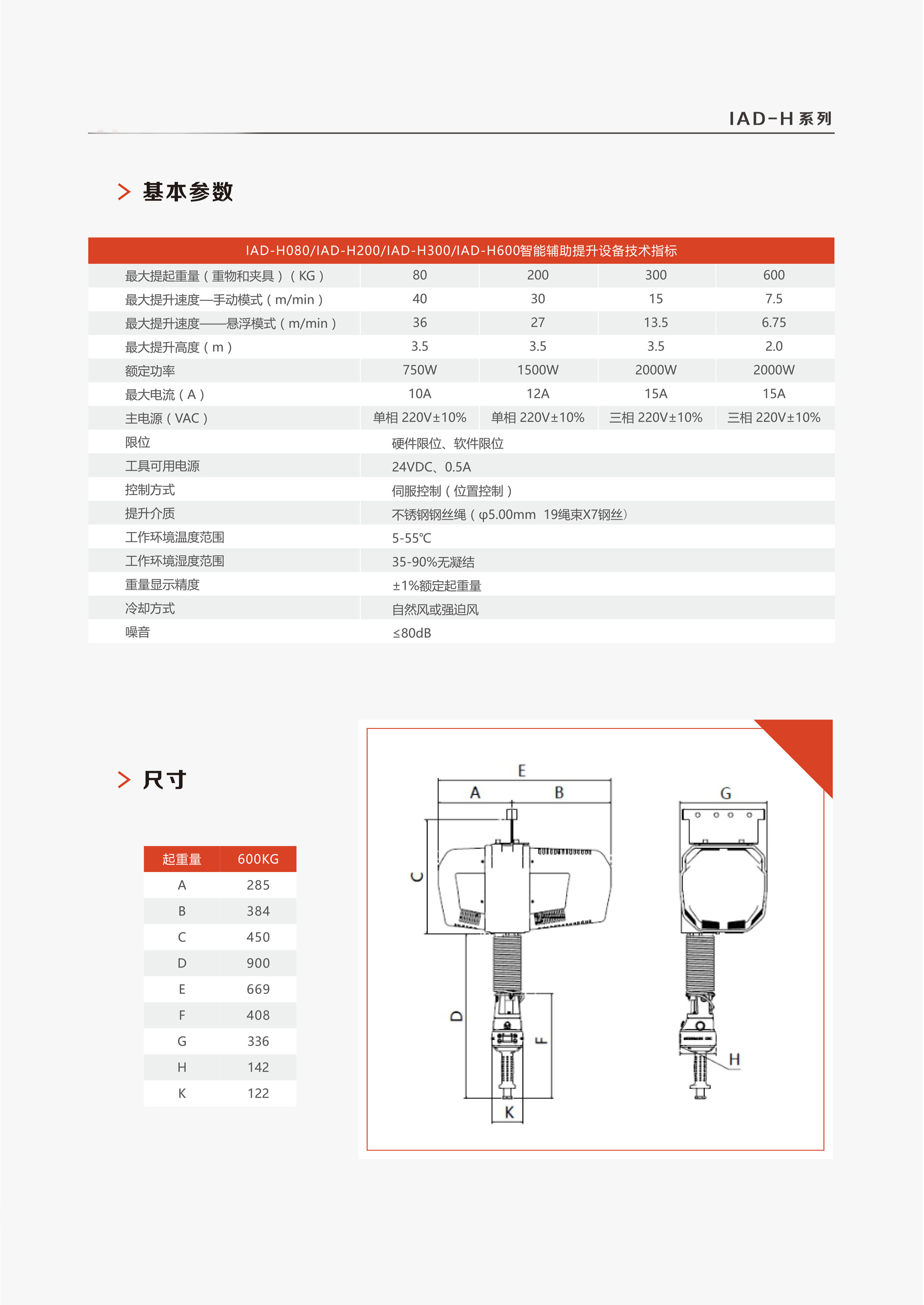

Lifting weight: 80 KG can be lifted
Faster Speed: Maximum Speed up to 40 m/min
Stronger responsiveness: adjustable acceleration and deceleration
The use of an intelligent auxiliary
hoisting equipment can effectively cover multiple units of work.
Using an intelligent auxiliary lifting equipment, it can cover a large area of a single working area.
Low damage rate and quick return on investment
Low accident risk
More environmentally friendly (dustproof, moisture resistant)
Equipped with input/output port function, more intelligent.

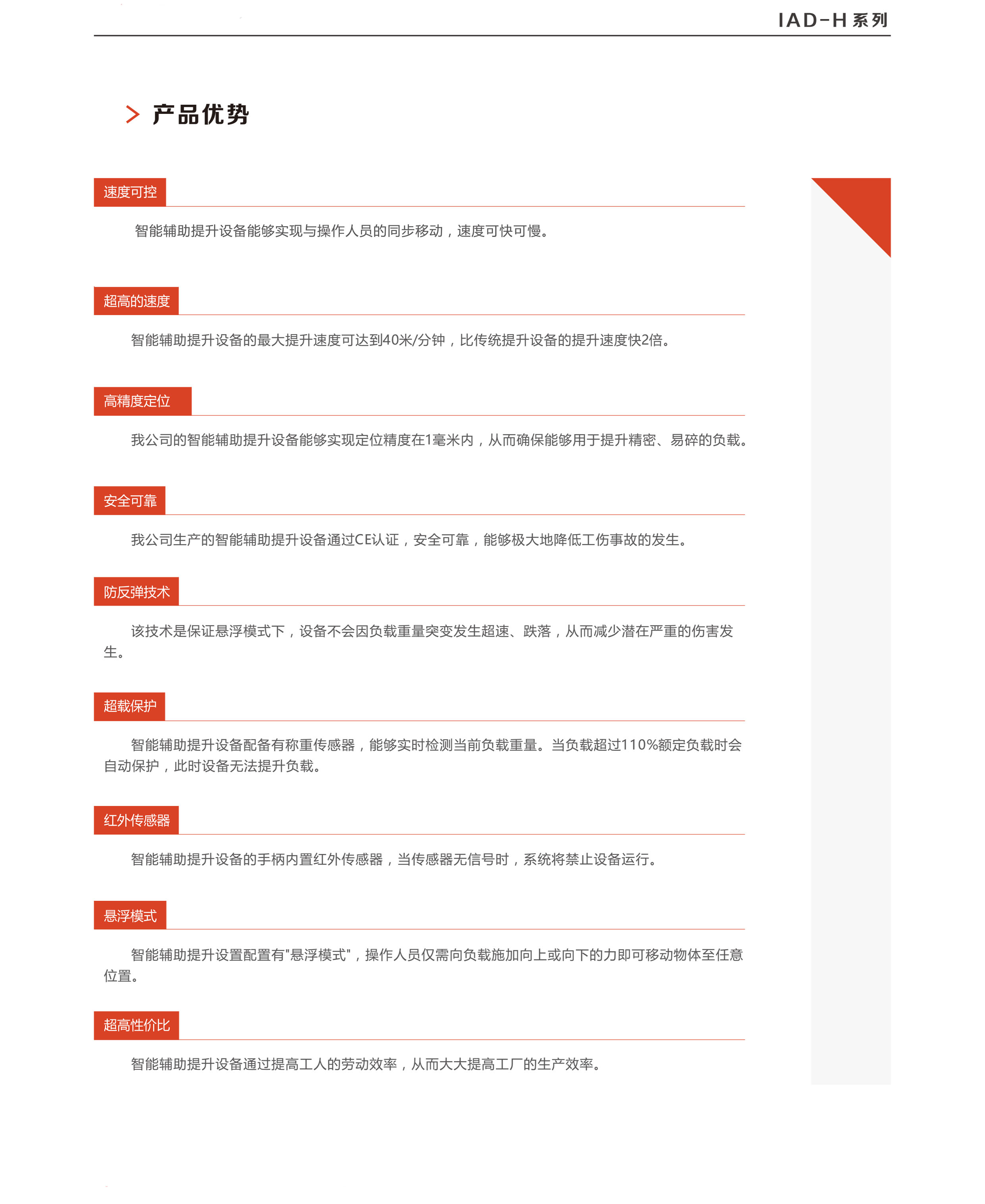

Product characteristics
Free speed control: Intelligent auxiliary lifting equipment can move synchronously with the operator, according to the speed chosen by the operator, it can be fast or slow, so it is very suitable for those operating environments which sometimes need high-speed operation and sometimes need slow and accurate operation in a load.
Ultra-high speed: Intelligent auxiliary lifting equipment can be lifted up to 40 meters per minute, which is three times faster than the traditional high-end lifting device in the current market. It has become a popular fast and accurate lifting device in the current market.
Millimeter Precision: Our company's intelligent auxiliary lifting equipment can achieve an unparalleled accuracy of lifting speed less than 0.3 m/min, thus ensuring the necessary precise control of operators in upgrading precision, expensive or fragile components.
Safety Choice: Our company's intelligent auxiliary lifting equipment is safe and reliable, which greatly reduces the occurrence of industrial accidents.
Anti-rebound technology: This technology can reduce potential serious injury accidents by eliminating offset or rebound of intelligent auxiliary
hoisting equipment when load weight changes.
Load-bearing overload protection: Intelligent auxiliary lifting equipment will automatically protect when the load exceeds its rated lifting weight, and can not be lifted.

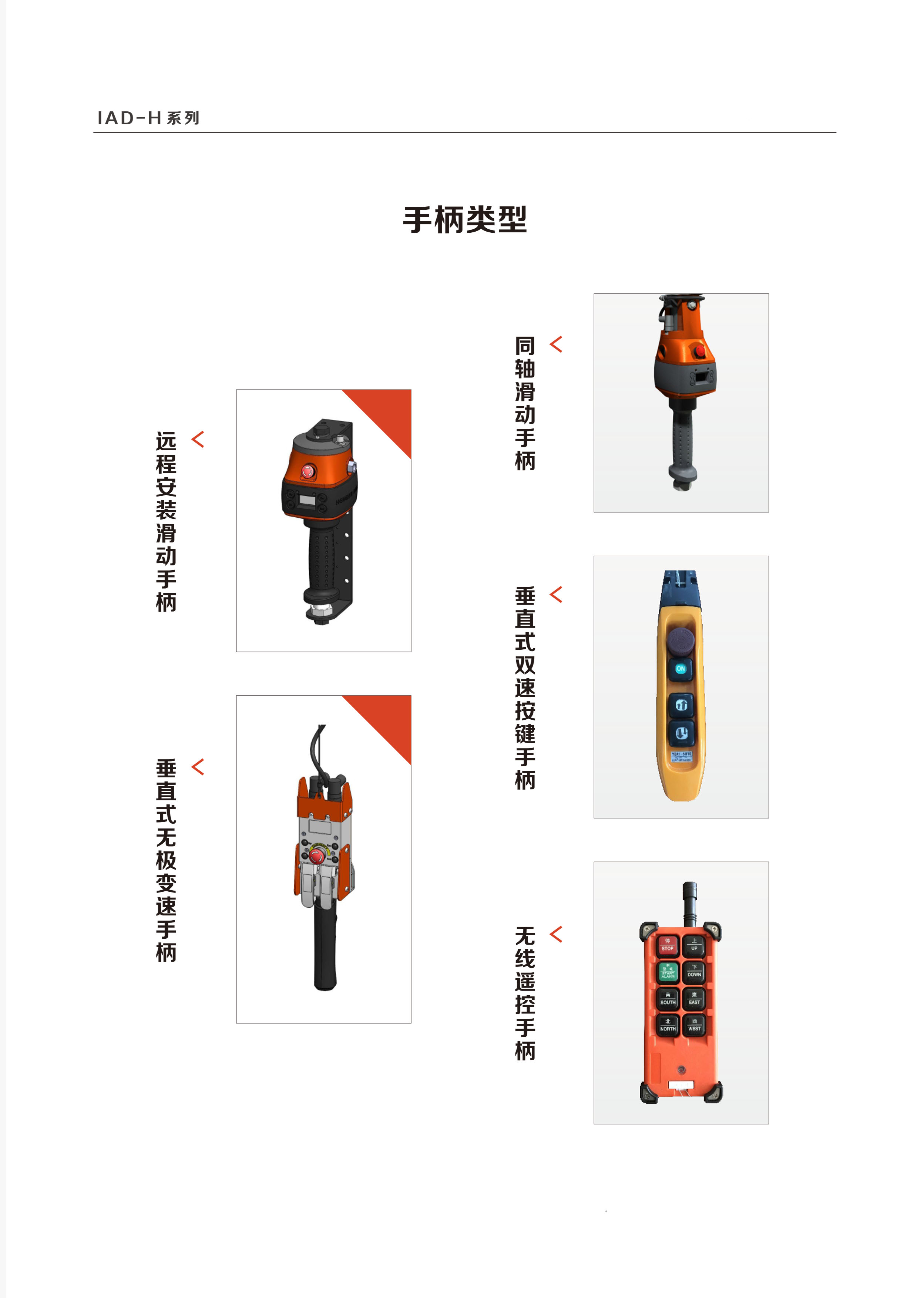

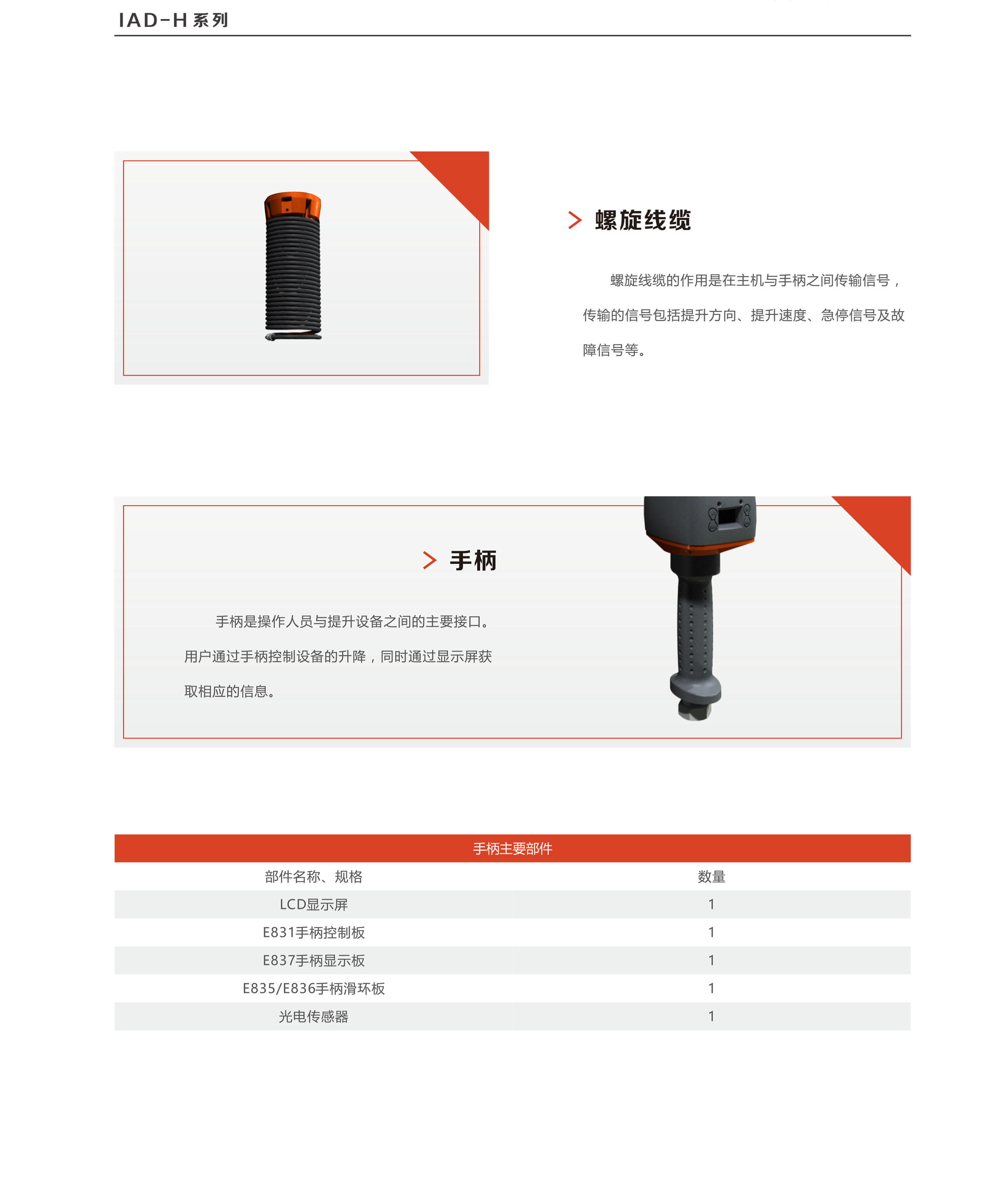

Operator in place function: The sliding handle of our company's intelligent auxiliary lifting equipment is equipped with photoelectric sensor, which will not allow the equipment to run unless the operator gives the operation instructions.
Suspension mode function: Intelligent auxiliary lifting equipment configuration has a variety of purposes & ldquo; Suspension mode & rdquo;. With only 2KG force applied to the load, the operator can control the load by both hands and locate the load accurately in the whole range.
Functions of suspension unloading mode: Intelligent auxiliary lifting equipment is specially equipped for unloading objects & ldquo; suspension unloading mode & rdquo;. Operators can control the load with both hands to achieve accurate unloading.
High cost performance: Intelligent assistant equipment technology improves the productivity of your factory by improving the labor efficiency of workers and assisting in completing complex operations.
